If you're looking for CNC products here's a sample of products I've already produced or can provide.


Spindles

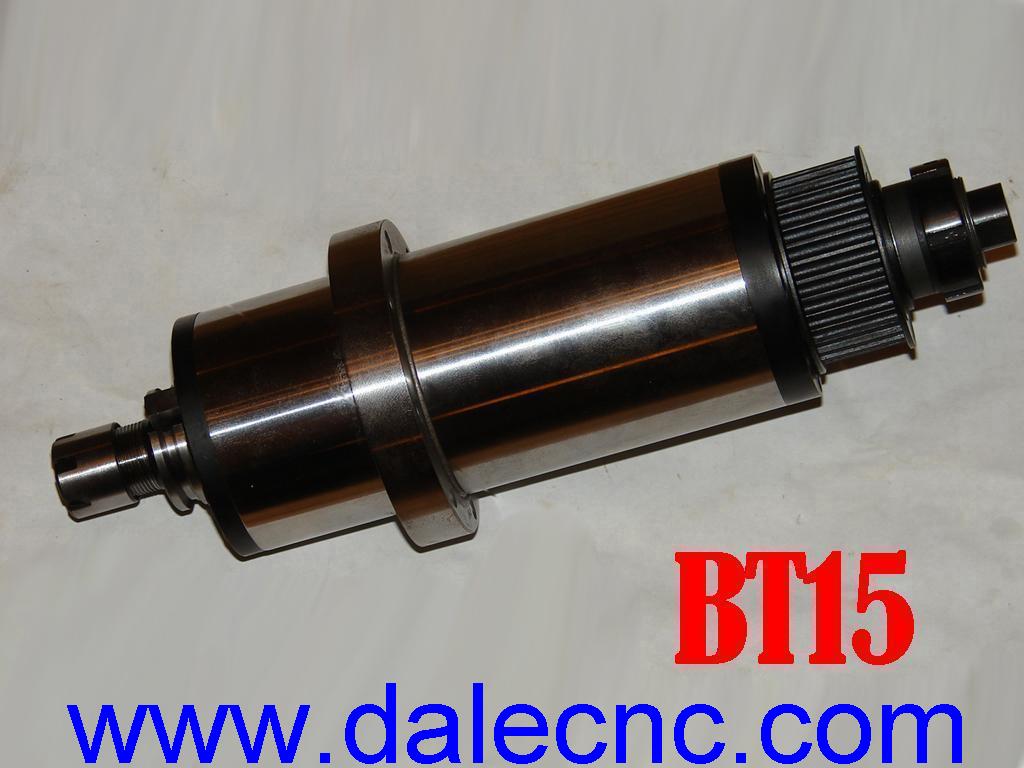

	BT15/ISO15 ATC Spindle Cartridge Even though this is in a small footprint, don't under-estimate it power. This is a serious piece of hardware that exceeds it's tooling size power specification. Supported Features: BT15 or ISO15 360lbs of drawbar force. 10,000RPM petal-clamp. Integrated coolant passage in body. Supports coolant through spindle (rotary union not included). Supports air blow-out (rotary union not included). HTD-5M pulley.	USD $1175.00

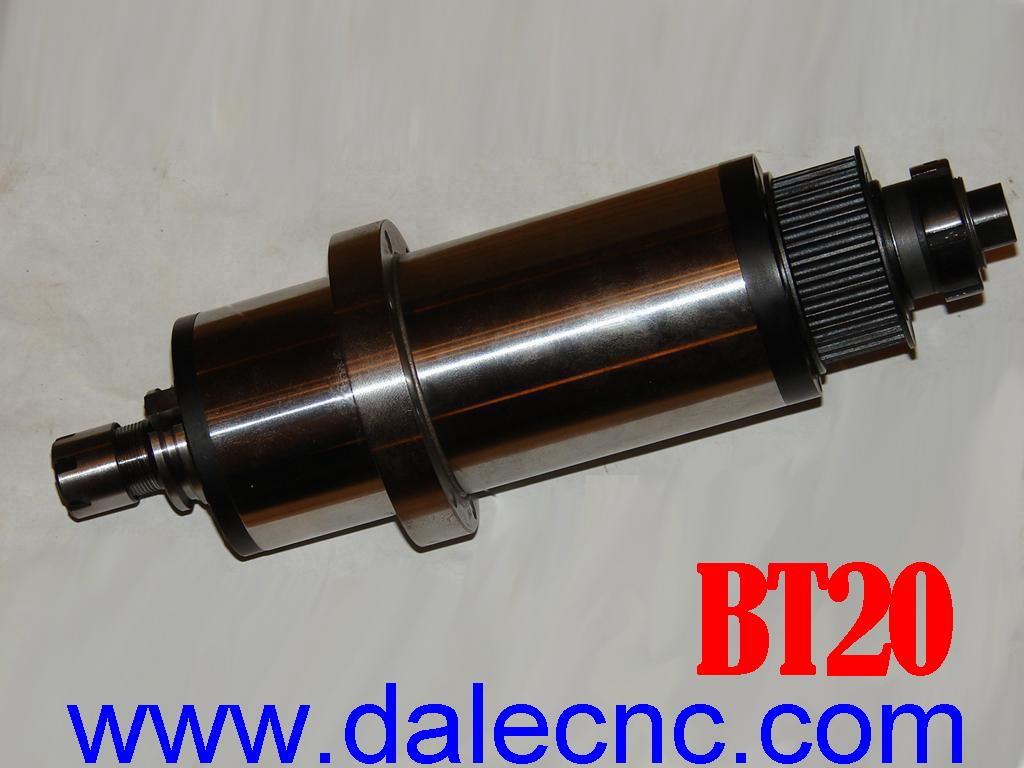

	BT20/ISO20 ATC Spindle Cartridge Like the BT15/ISO15 spindle cartridge, this is the next evolution in cartridges offering you higher sustained cutting force while maintaining a small footprint. Gives more where needed. Supported Features: BT20 or ISO20 540lbs of drawbar force. 10,000RPM petal-clamp. Integrated coolant passage in body. Supports coolant through spindle (rotary union not included). Supports air blow-out (rotary union not included). HTD-5M pulley.	USD $1475.00

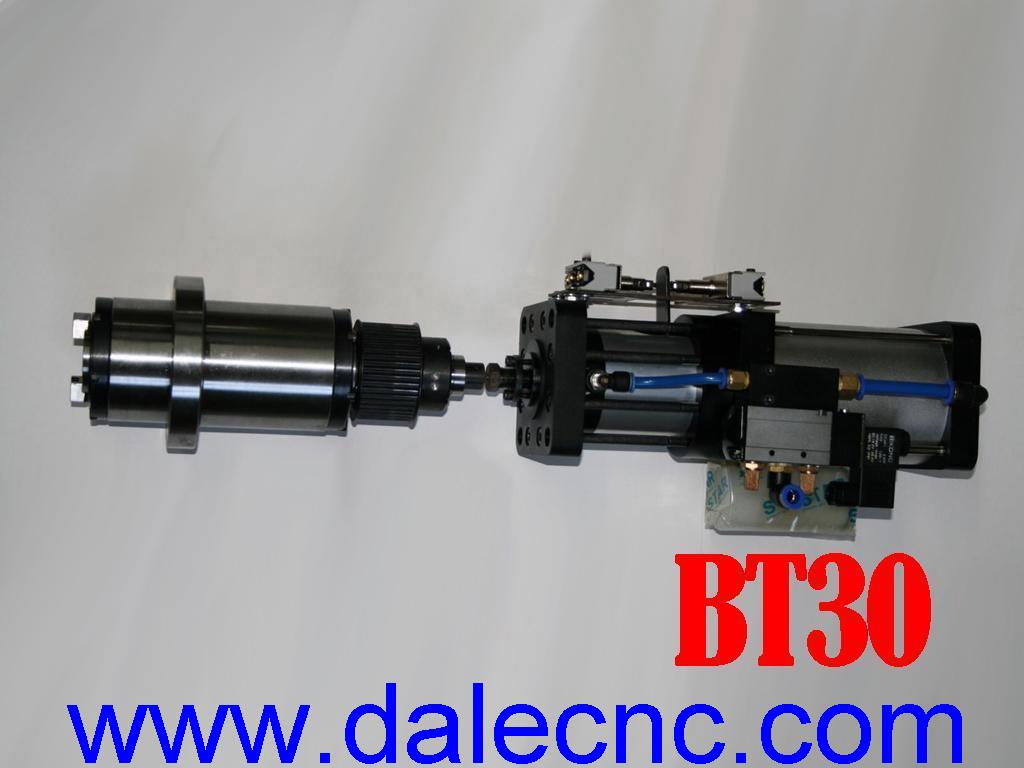

	BT30 ATC Spindle Cartridge BT30 spindle cartridge with Hydraulic-Pneumatic drawbar actuator. Supported Features: petal-clamp 1400lbs of drawbar force. 6,000RPM or 8,000RPM Supports coolant through spindle (rotary union not included). Supports air blow-out (rotary union not included). HTD-5M pulley.	USD $2475.00

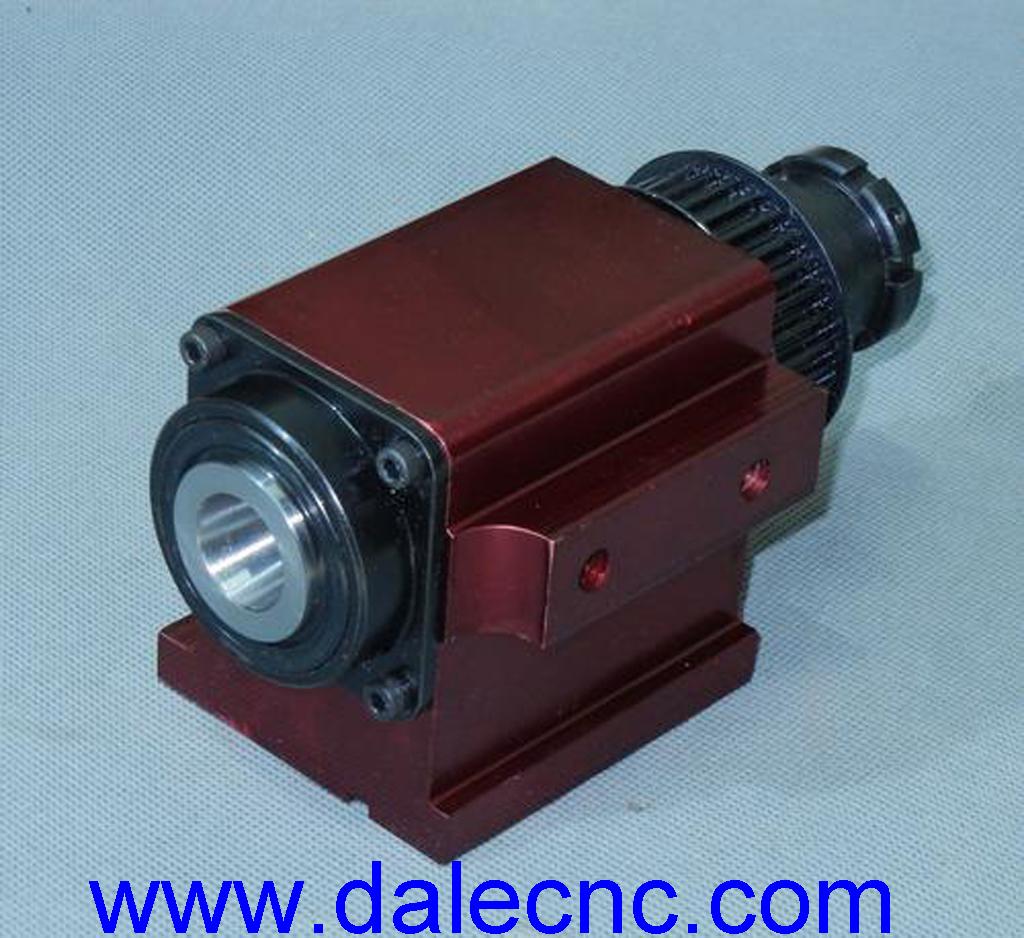

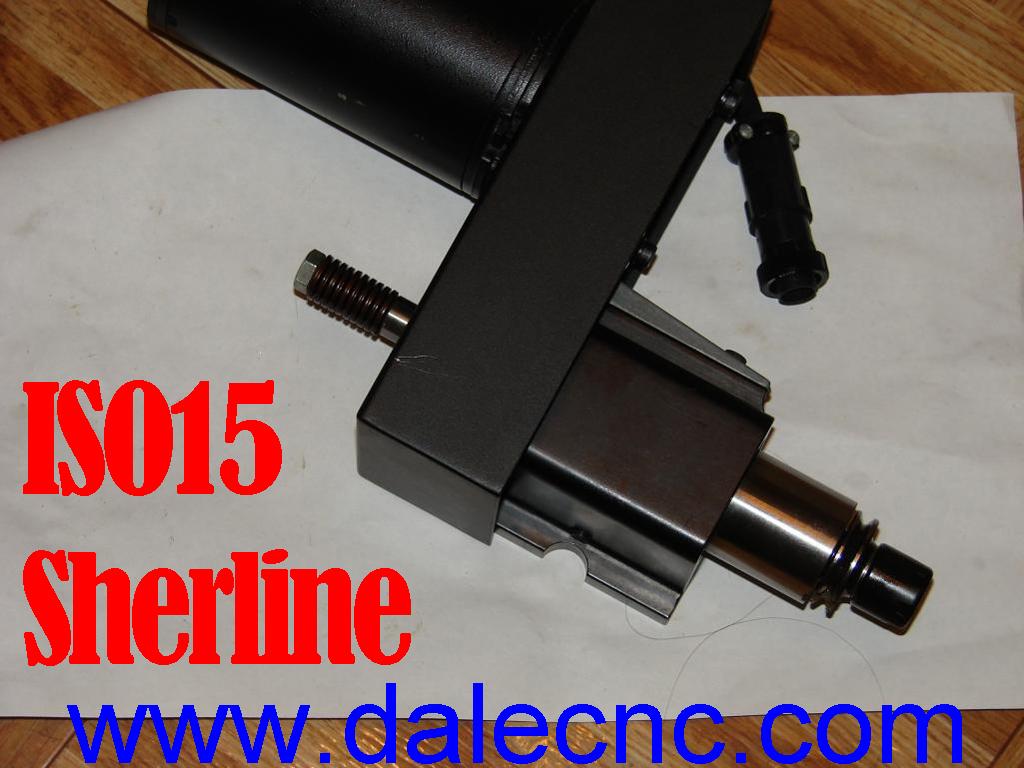

	ISO15 Sherline Spindle Head Your Sherline will thank you!!! Supported Features: ISO15 6,000RPM Max Dual 25deg Angular Contact bearings in nose. petal-clamp. 6 Tool Holders XL-037 pulleys (0.200in pitch) for 3/8in (9.525mm) wide belt.	USD $800.00
	ISO15 Sherline HD Spindle Head Your Sherline Mill will thank you!!! Supported Features: ISO15 10,000RPM Max Dual 25deg Angular Contact bearings in nose. Dual-Row Cylindrical Rolloer Bearing in rear. petal-clamp. Optional 10,000RPM 250W fan cooled motor ($200.00). 6 Tool Holders HTD-5M pulleys (5mm pitch) for 15mm wide belt.	USD $950.00
click an image to see it full size

Motors

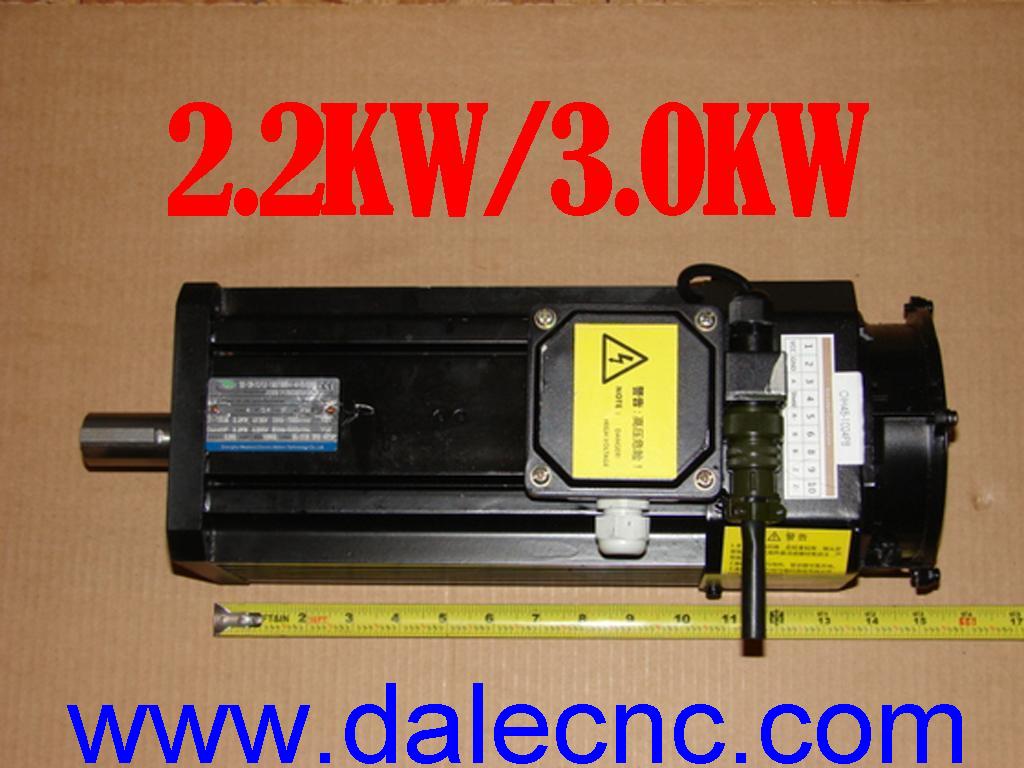

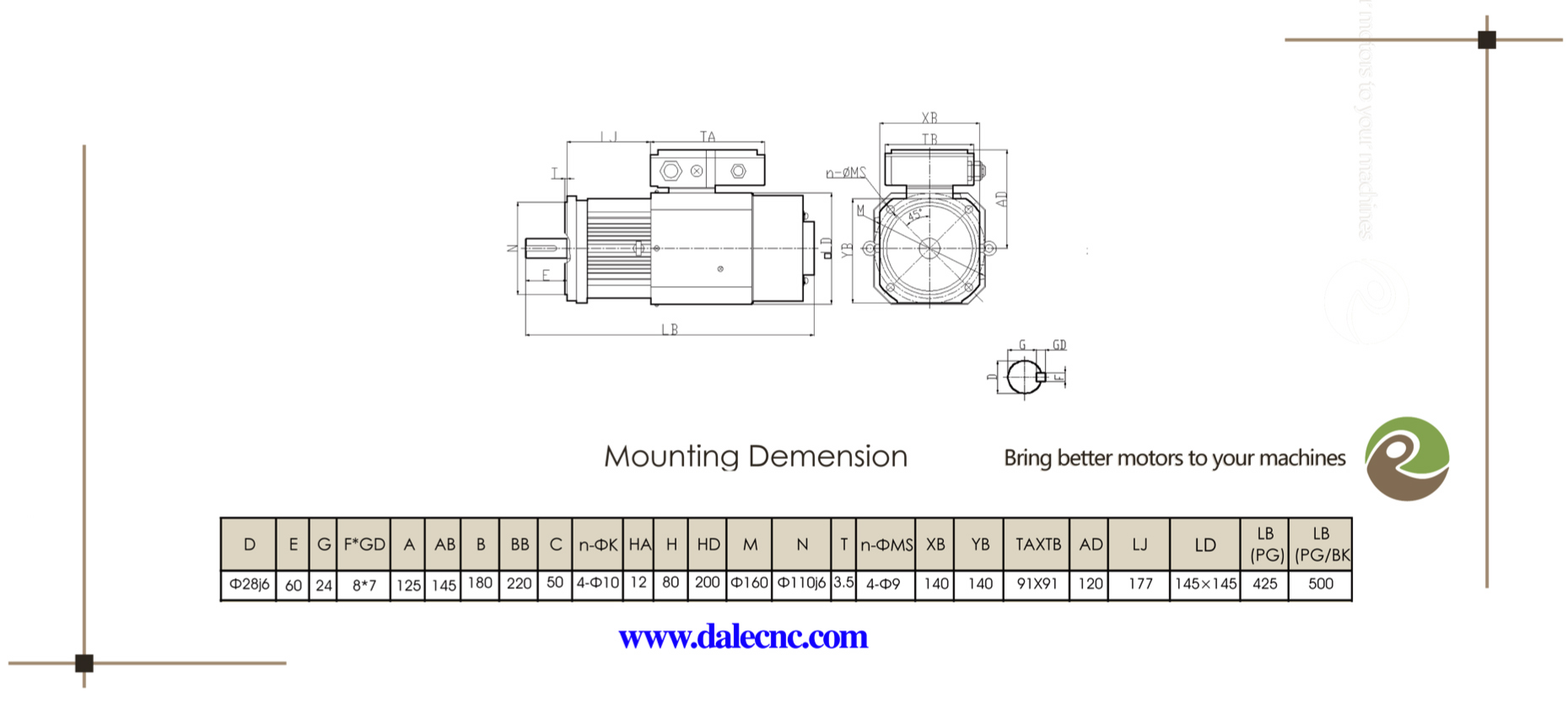

2.2KW/3.0KW Spindle Servo Motor

10,000RPM.
220V 3-phase.
1024ppr Tamagawa Encoder.
embedded image

USD $1275.00

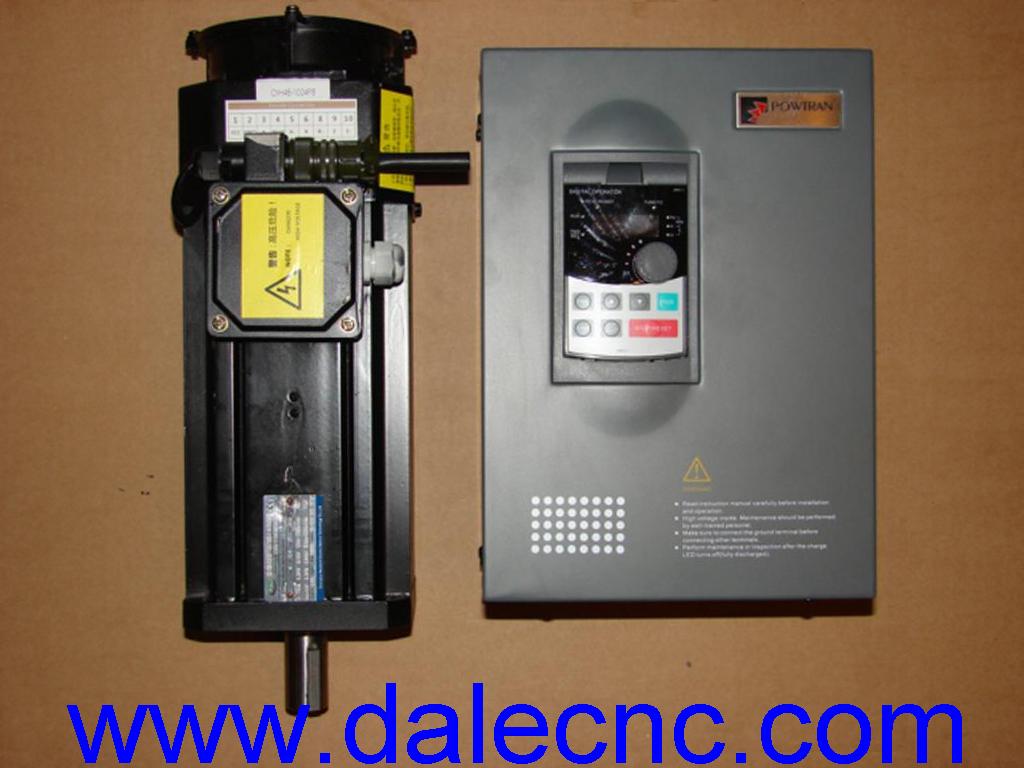

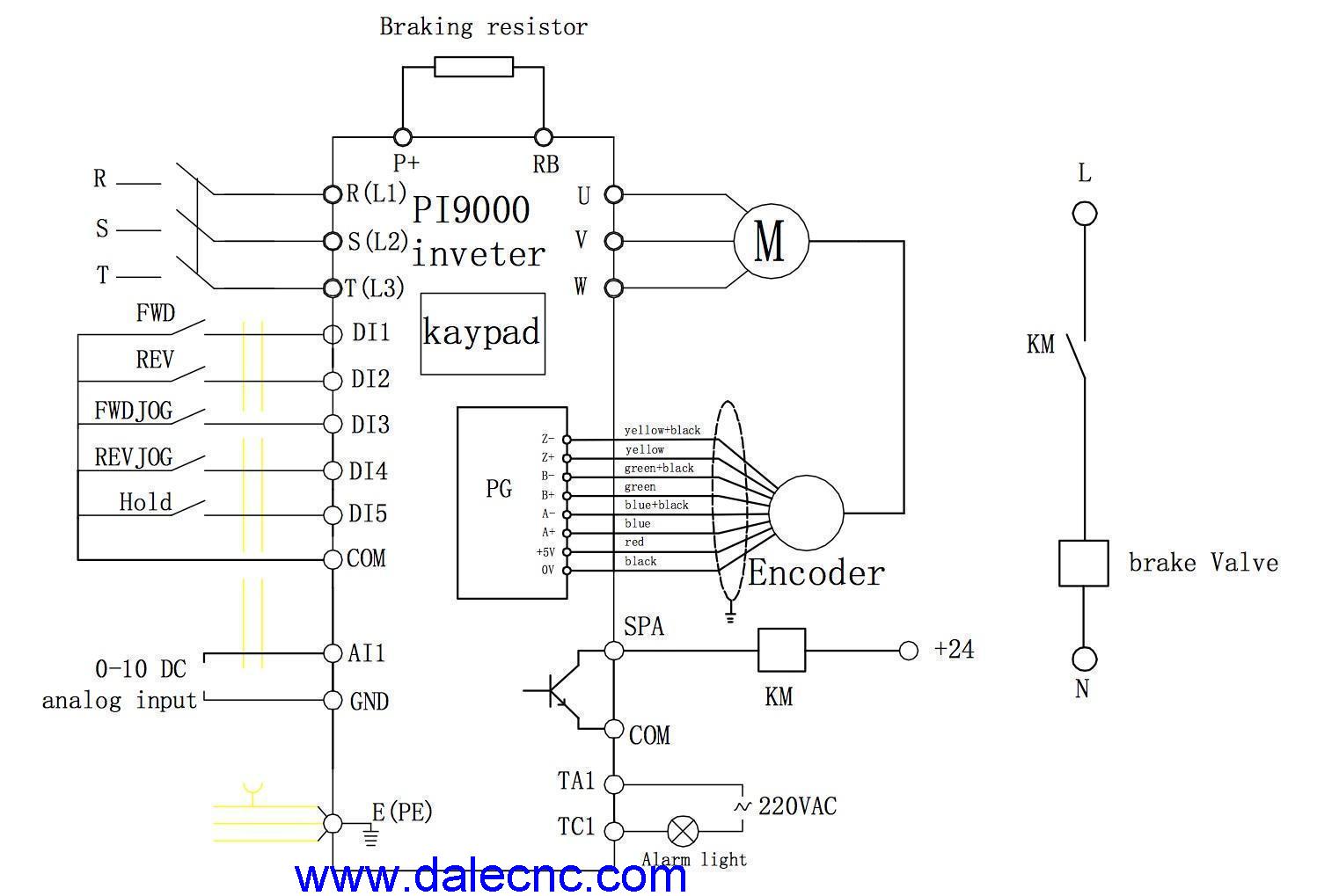

2.2KW/3.0KW Spindle Servo Motor + PI9100-004G1

Closed Loop 220V single phase input 4.0KW VFD/Motor Combo

Motor
10,000RPM.
220V 3-phase.
1024ppr Tamagawa Encoder.

VFD
Single-Phase / 3-phase 220V input power.
4.0KW output power.

PI9000 CONFIGURATION SETTINGS
F0.11	2
F0.13	1
F0.14	1.7
F1.00	1
F1.01	2
F1.02	4
F1.03	5
F1.04	37
F2.02	2
F2.04	37
2.2KW MOTOR CONFIGURATION SETTINGS
B0.01	2.2
B0.02	220 (230)
B0.03	10 (9.5)
B0.05	1500
B0.29	1024

USD $1725.00

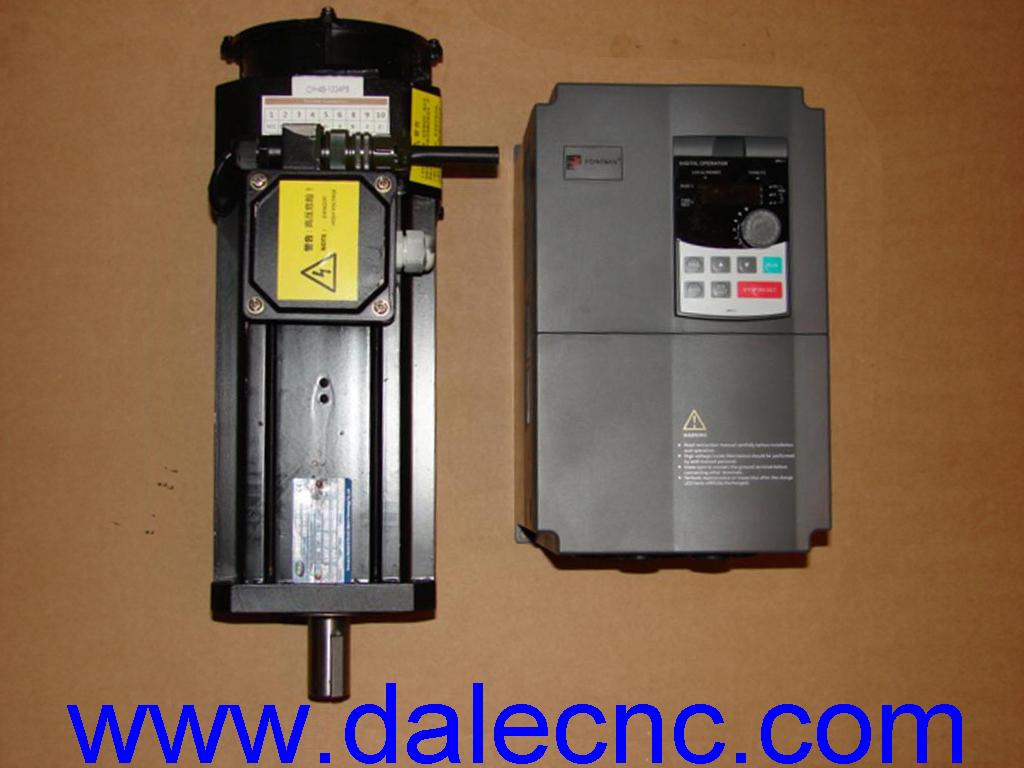

2.2KW/3.0KW Spindle Servo Motor + PI9200-5R5G1

Closed Loop 220V single phase input 5.5KW VFD/Motor Combo

Motor
10,000RPM.
220V 3-phase.
1024ppr Tamagawa Encoder.

VFD
Single-Phase / 3-phase 220V input power.
5.5KW output power.

PI9000 CONFIGURATION SETTINGS
F0.11	2
F0.13	1
F0.14	1.7
F1.00	1
F1.01	2
F1.02	4
F1.03	5
F1.04	37
F2.02	2
F2.04	37
2.2KW MOTOR CONFIGURATION SETTINGS
B0.01	2.2
B0.02	220 (230)
B0.03	10 (9.5)
B0.05	1500
B0.29	1024

USD $1975.00

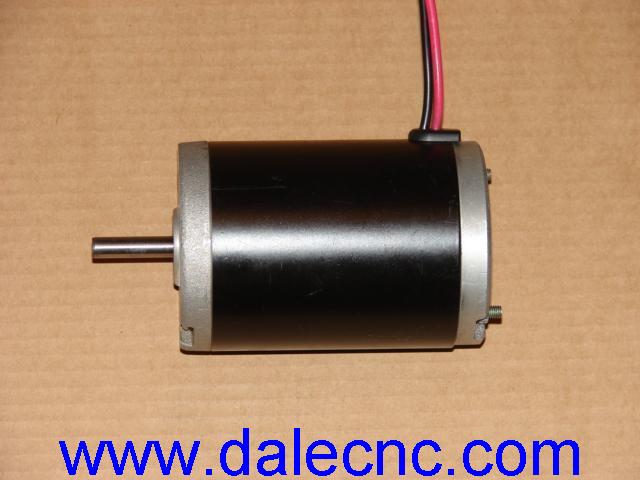

0.20KW Sherline Budget Upgrade Spindle Motor

The stock Sherline mill/lathe spindle motor is only 60W and only delivers 2,800RPM at the spindle using the regular pulleys

This budget upgrade motor will give you 5,000RPM at the spindle and three and one third times the power over the stock Sherline motor without making any other component changes.

Budget Sherline Upgrade Motor
Power	200W
RPM	10,000
Voltage	90VDC
Current	2.9A
No Load Current	0.8A
Stall Current	16A
Stall Torque	0.35Nm

USD $125.00

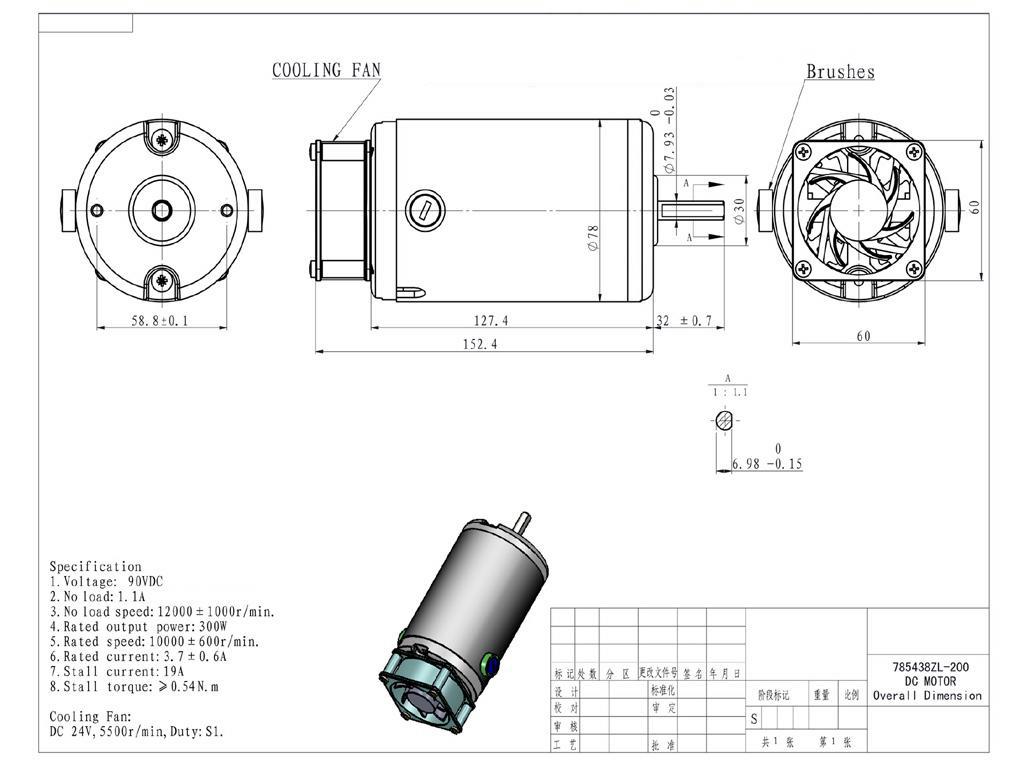

0.25KW Sherline Super-Duty Upgrade Spindle Motor

The stock Sherline mill/lathe spindle motor is only 60W and only delivers 2,800RPM at the spindle using the regular pulleys

This super-duty upgrade motor will give you 5,000RPM at the spindle and four times the power over the stock Sherline motor without making any other component changes.

Super-Duty Sherline Upgrade Motor
Power	250W
RPM	10,000
Voltage	90VDC
Current	3.7A
No Load Current	1.1A
Stall Current	19A
Stall Torque	0.54Nm
Cooling	External 24VDC Fan

USD $195.00

click an image to see it full size


Panels

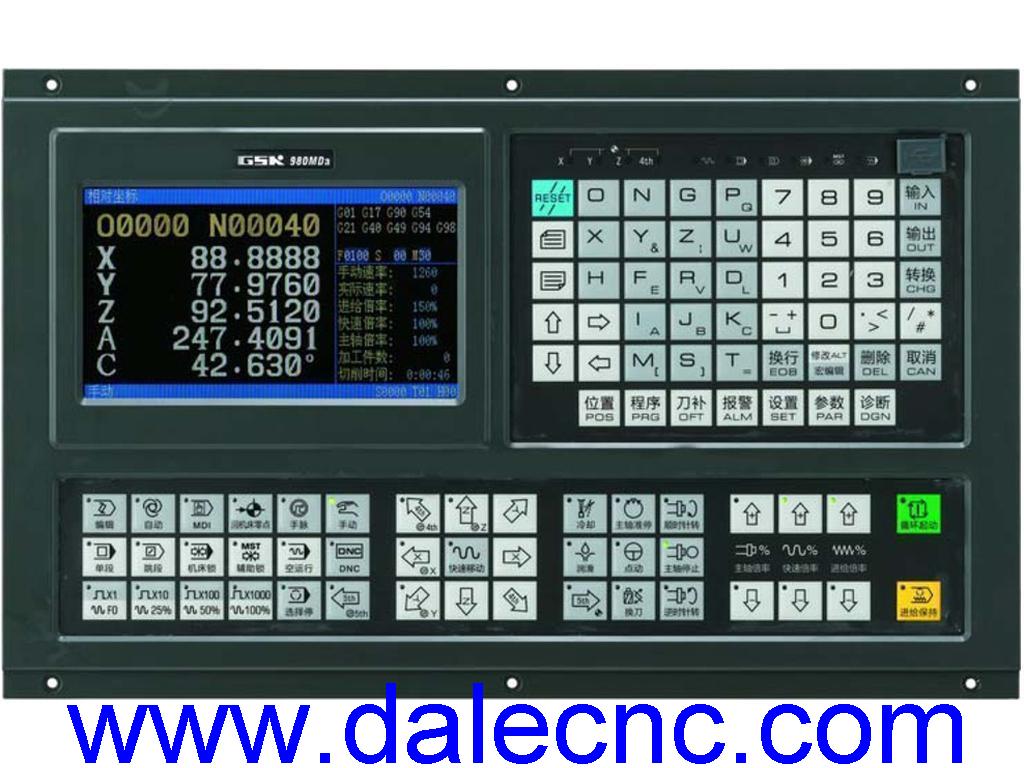

	GSK-980MDa1 5-axis CNC panel I am a GSK authorized reseller, I can offer this product cheaper than anyone else in USA/Canada. This product is drop-shipped directly from the manufacturer using DHL courier services (additional import duties may apply). Typical duties are 1% to 3% of the products value. As a bonus, this product includes the auxiliary switch panel with switches (a $200.00 value). Supported Features: Five axis (X, Z, Y, 4th and 5th) control. Any three axis linkage. The axial name and the axial type of 4th and 5th axis can be defined. 2ms interpolation cycle. Maximum speed: 6m/min 0.001mm, or 0.0001inch resolution Multiple functions, it can perform drilling/boring, roughing of round groove/rectangle groove, finishing of full circle/rectangle, continuous drilling of straight line/rectangle/arc, etc. Built-in many PLC programs, current running PLC programs can be selected. Memory capacity: 40M, total 10,000 part programs. Support macro command programming in sentence type and the calling of macro program with the Parameter. Support metric system/inch system, with the function of auto chamfering and tool life management. 7.4in color LCD display in Chinese, English, Spanish, and Russian, which can be selected by the parameter. With USB interface, support USB file processing, system configuration and software upgrade. DNC in high speed, realize part program real-time transmission processing. Analog voltage output of 0V-10V in two channels, support two spindles. One channel for remote jogging, supporting external/internal MPG. Common I/O in 40 inputs, 32 outputs. GCODES	USD $1299.00

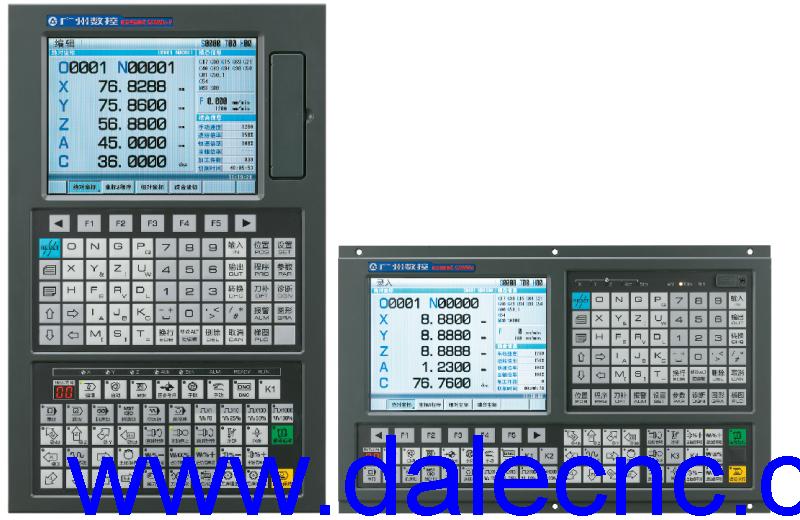

	GSK-980MDc 5-axis CNC panel I am a GSK authorized reseller, I can offer this product cheaper than anyone else in USA/Canada. This product is drop-shipped directly from the manufacturer using DHL courier services (additional import duties may apply). Typical duties are 1% to 3% of the products value. As a bonus, this product includes the auxiliary switch panel with switches (a $250.00 value). Supported Features: Five axis (X, Z, Y, 4th and 5th) control. Any three axis linkage. The axial name and the axial type of 4th and 5th axis can be defined. 2ms interpolation cycle. Rapid traverse speed: When the command unit is 0.001mm, the maximum speed is 60m/min; 0.0001mm, the maximum speed is 24m/min Availablein Horizontal and Vertical configurations Multiple functions, it can perform drilling/boring, roughing of round groove/rectangle groove, finishing of full circle/rectangle, continuous drilling of straight line/rectangle/arc, etc. Built-in many PLC programs, current running PLC programs can be selected. Memory capacity: 40M, total 10,000 part programs. Support macro command programming in sentence type and the calling of macro program with the Parameter. Support metric system/inch system, with the function of auto chamfering and tool life management. Display in Chinese, English, Spanish, and Russian, which can be selected by the parameter. With USB interface, support USB file processing, system configuration and software upgrade. DNC in high speed, realize part program real-time transmission processing. Analog voltage output of 0V-10V in two channels, support two spindles. One channel for remote jogging, supporting external/internal MPG. Common I/O in 40 inputs, 32 outputs. GCODES	USD $2290.00

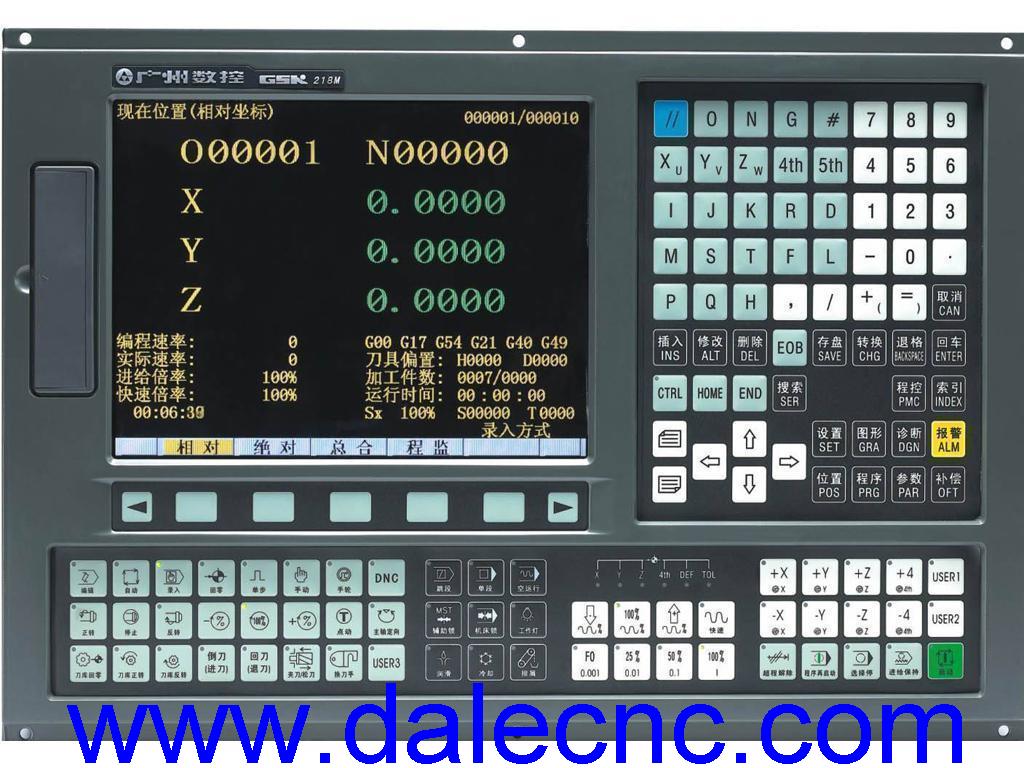

	GSK-218MC 5-axis CNC panel I am a GSK authorized reseller, I can offer this product cheaper than anyone else in USA/Canada. This product is drop-shipped directly from the manufacturer using DHL courier services (additional import duties may apply). Typical duties are 1% to 3% of the products value. As a bonus, this product includes the auxiliary switch panel with switches (a $250.00 value). Supported Features: The standard default configuration is 4-axis (3 linkage), and the 4th (rotary/linear) axis can be set by parameters. The max. positioning speed can reach 30m/min, and the max. interpolation speed can reach 15m/min. Linear, exponential and Speed acceleration/deceleration is optional. Analog voltage output of 0V-10V in two channels, supports two-spindles. Bidirectional pitch error compensation, backlash error compensation, tool length and tool radius compensation are available. Convenient management for the system with multilevel operation password. 10.4 inch chromatic LCD . Chinese, English, Spanish and Russian language interface can be selected by setting the corresponding parameter. The system has 56MB program memory capacity to store up to 400 programs and has the background edit function so you can edit a program in the background while running another. The system has the standard RS232 and USB interface which can accept bidirectional transmission of programs, parameters and PLC programs between CNC and PC (optional ethernet interface available). The system has DNC control in high speed, processing part program in real-time. It's built-in PLC can operate the various logic control functions; the ladder can be edited, uploaded and downloaded on-line. It is easy to switch between automatic and manual by the function of manual button. It can be implemented that coordinate move in automatic operation or by manual handle operation and step intervention. It's supported that editing a program whi le executing another program by background editing. It can be selected by parameter between rigid tapping and tapping by spindle tracking. 3 level automatic gearing, the voltage of frequency conversion may be changed by setting spindle speed at any moment. It is supported some advanced functions that rotation, scaling, polar coordinate and many canned cycles etc. By USB function, it's easy to upload and download programs, to machine workpieces online. GCODES	USD $2975.00
click an image to see it full size


Tooling

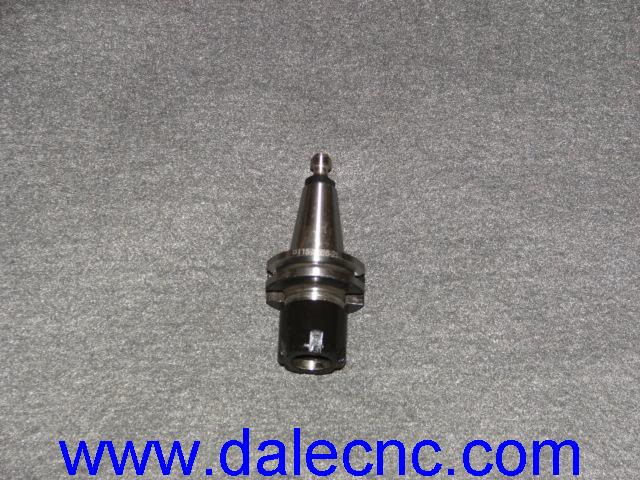

	BT15-ER16-25L BT15-ER16 Tool Holder. Micro-tooling for serious work. Supported Features: Fits BT15 or ISO15 spindle ER16 collets (not included). 360lbs of drawbar force. 10,000RPM for 15deg petal-clamp. Supports coolant through spindle (rotary union & hole-through retention knob not included).	USD $75.00

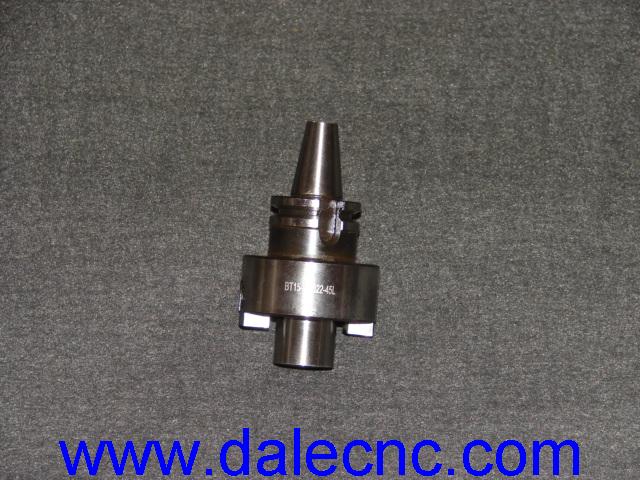

	BT15-FMB22 BT15-FMB22 Shell Mill Tool Holder. Micro-tooling for serious work. Supported Features: Fits BT15 or ISO15 spindle Accepts FMB22 based face mill cutter heads. 360lbs of drawbar force. 10,000RPM for 15deg petal-clamp. Supports coolant through spindle (rotary union & hole-through retention knob not included).	USD $94.00

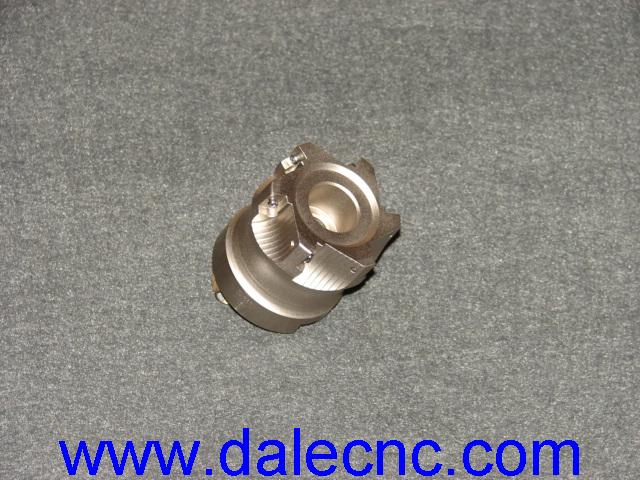

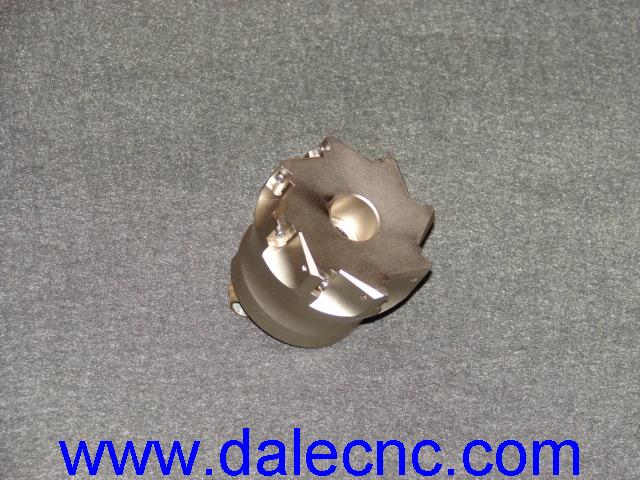

	300R-50-22-6T FMB22 50mm 6-insert Face Mill Head. Micro-tooling for serious work.	USD $71.00
	300R-63-22-8T FMB22 63mm 8-insert Face Mill Head. Micro-tooling for serious work.	USD $86.00

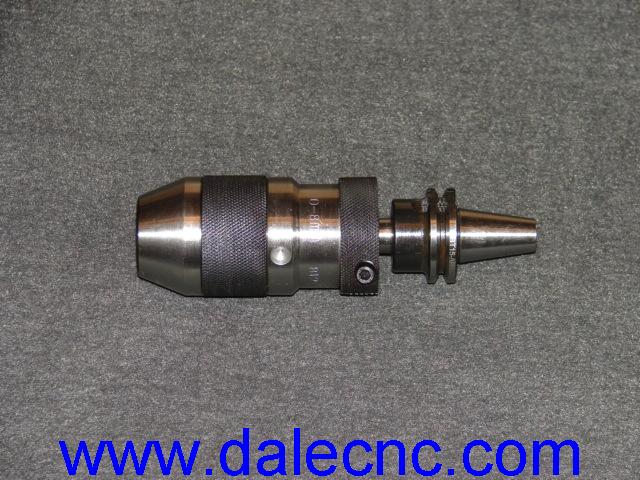

	BT15-APU08 BT15-APU08 Drill Chuck Tool Holder. Micro-tooling for serious work. Supported Features: Fits BT15 or ISO15 spindle Keyless Precision Drill Chuck. accepts 1mm - 8mm (5/16) drill bit. 360lbs of drawbar force. 10,000RPM for 15deg petal-clamp.	USD $105.00

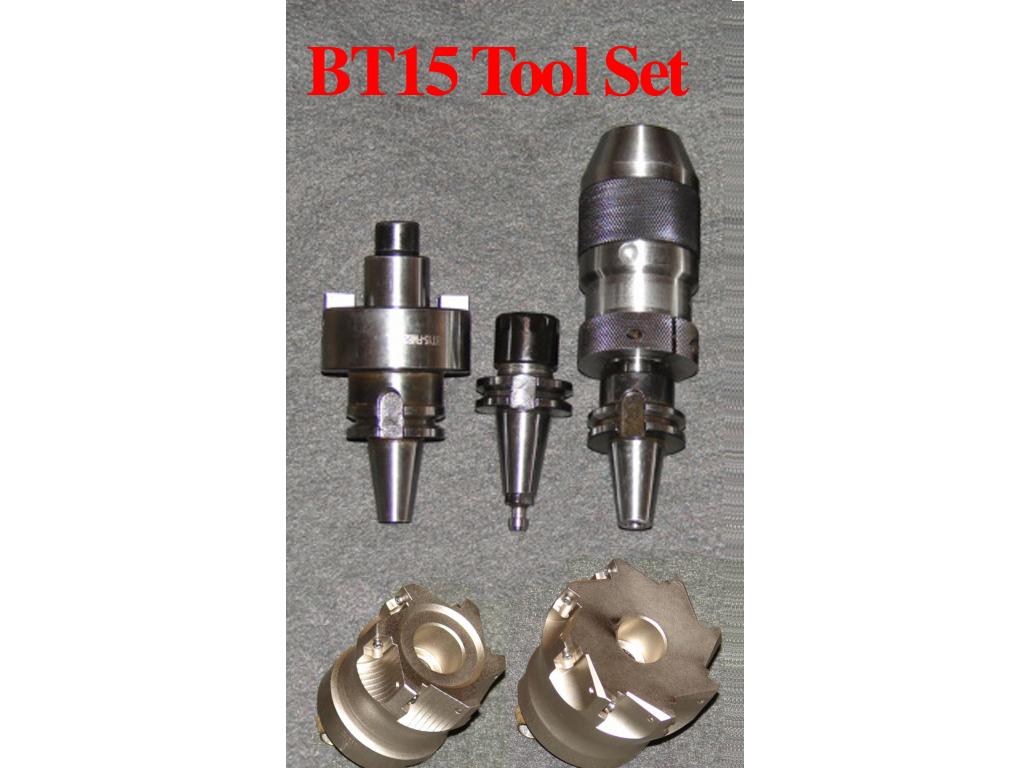

	BT15-FULL BT15 Tool Holder Set. Micro-tooling for serious work. Supported Features: Fits BT15 or ISO15 spindle 8pcs BT15-ER16-25L Tool Holder. 1pc BT15-APU08 8mm (5/16) Keyless Precision Drill Chuck. 1pc BT15-FMB22 Shell Mill Holder. 1pc BAP300R-50-22-6T 50mm 6-insert Face Mill Head. 1pc BAP300R-63-22-6T 63mm 8-insert Face Mill Head.	USD $860.00

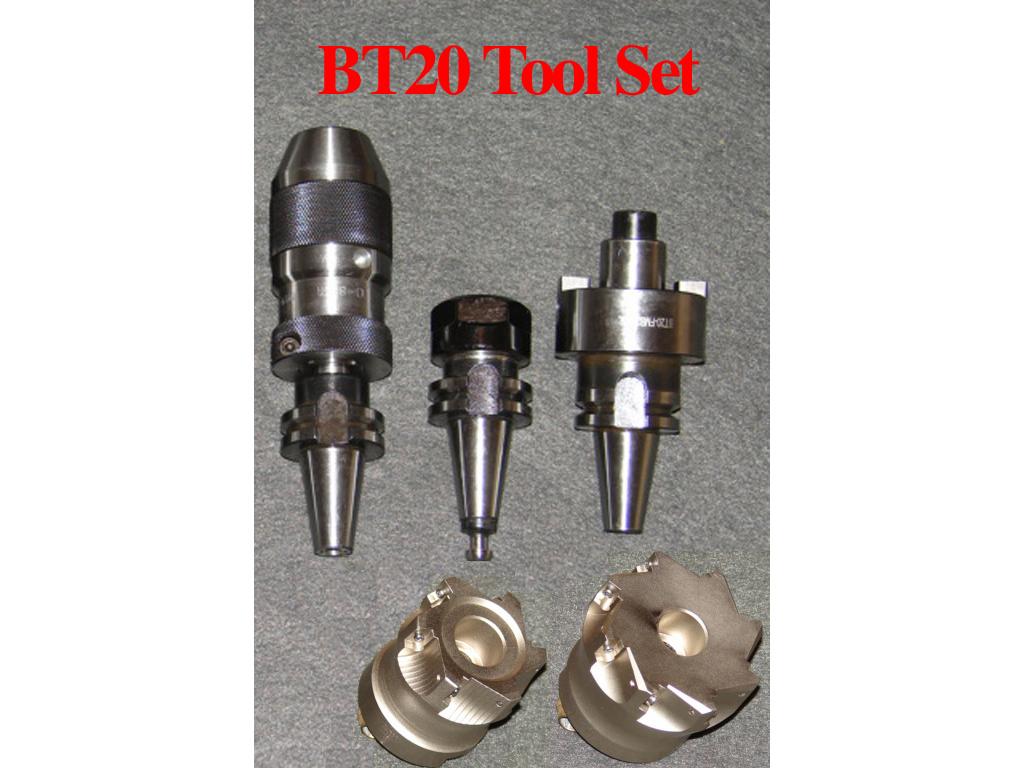

	BT20-FULL BT20 Tool Holder Set. Micro-tooling for serious work. Supported Features: Fits BT20 or ISO20 spindle 8pcs BT20-ER20-45L Tool Holder. 1pc BT20-APU10 10mm (3/8) Keyless Precision Drill Chuck. 1pc BT20-FMB22 Shell Mill Holder. 1pc BAP300R-50-22-6T 50mm 6-insert Face Mill Head. 1pc BAP300R-63-22-6T 63mm 8-insert Face Mill Head.	USD $1040.00
click an image to see it full size


Frames

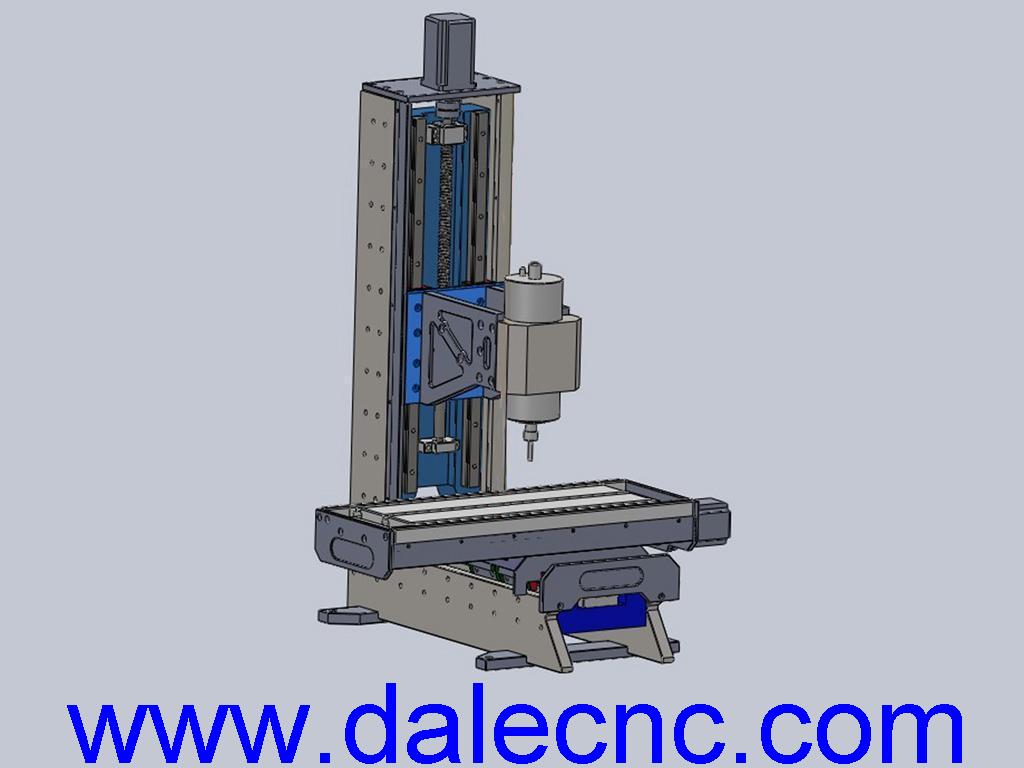

	BT15/ISO15/BT20/ISO20 ATC Frame This is the next evolution in mini-VMC frames at a reasonable price with large travels while maintaining a small footprint. Gives more where needed. Supported Features: BT15/ISO15 or BT20/ISO20 spindle cartridge Scallable size. 20mm or 25mm Linear guide rails. 20mm rolled, 25mm rolled or 25mm precision ground ballscrew. Available with 600W 60mm/750W 90mm/1.0KW 90mm Servo Motor Mounts. Rotary Union Included. Available with Spindle Motor Mount included with 2.2/3.0KW spindle motor or Blank for your own motor.	USD $4475.00
click an image to see it full size

Click to e-mail Me
Or Call Me: (727) 698-1342
Or Join the IRC for live chat: irc.dalecnc.com (requires IRC client software)

Pneumatic / Hydraulic Cylinder Bore / Force Calculator

'lb' = pounds & 'oz' = ounces.
Unit shown in red is the SI 'preferred' unit.
Very large and very small numbers appear in e-Format and are unspaced.
Unvalued (trailing) zeros on all numbers have been suppressed.

Pneumatic

Available pressure:	PSI
Available pressure:	MPa
Force generated:	Foot Pounds
Force generated:	Newton Meters
Area required:	Square Inches
Cylinder bore size:	inches
Cylinder bore size:	mm

Hydraulic Master

Cylinder bore:	inches
Cylinder bore:	mm
Area:	Square Inches
Travel:	Inches
Travel:	mm

Hydraulic Slave

Cylinder bore:	inches
Cylinder bore:	mm
Area:	Square Inches
Power factor:
Force generated:	Foot Pounds
Force generated:	Newton Meters
Travel:	Inches
Travel:	mm

Unit shown in red are changeable.

Angle / Taper Information
There are two common tapers used in mill spindles, the Imperial standard 8°, 17', 50" and Metric standard 7:24 (8°, 17', 49.725")

Whole Degrees	Minutes	Seconds

Decimal degrees 4 decimal places	Decimal degrees 5 decimal places	Decimal degrees 6 decimal places	Decimal degrees 7 decimal places

The calculation equation is simply: Decimal degrees = whole number of degrees, plus minutes divided by 60, plus seconds divided by 3600

Reverse process: Input decimal degrees and the result is given in deg/min/sec format.

Decimal Degrees

Whole degrees	Minutes	Seconds

Sine Bar Constants Charts
These charts contain information on metric and imperial sine bar constants.

MIN	0°	1°	2°	3°	4°	5°	6°	7°	8°	9°	10°
IMPERIAL - 5" (Machine Taper = 18.327141mm or 0.721541in)
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59	0.000000 .001454 .002909 .004363 .005818 0.007272 .008727 .010181 .011636 .013090 0.014544 .015999 .017453 .018908 .020362 0.021817 .023271 .024725 .026180 .027634 0.029089 .030543 .031997 .033452 .034906 0.036361 .037815 .039270 .040724 .042178 0.043633 .045087 .046541 .047996 .049450 0.050905 .052359 .053813 .055268 .056722 0.058176 .059631 .061085 .062539 .063994 0.065448 .066902 .068357 .069811 .071265 0.072719 .074174 .075628 .077082 .078537 0.079991 .081445 .082899 .084354 .085808	0.087262 .088716 .090170 .091625 .093079 0.094533 .095987 .097441 .098896 .100350 0.101804 .103258 .104712 .106166 .107620 0.109074 .110529 .111983 .113437 .114891 0.116345 .117799 .119253 .120707 .122161 0.123615 .125069 .126523 .127977 .129431 0.130885 .132339 .133793 .135247 .136700 0.138154 .139608 .141062 .142516 .143970 0.145424 .146877 .148331 .149785 .151239 0.152693 .154146 .155600 .157054 .158508 0.159961 .161415 .162869 .164322 .165776 0.167230 .168683 .170137 .171590 .173044	0.174497 .175951 .177405 .178858 .180312 0.181765 .183219 .184672 .186125 .187579 0.189032 .190486 .191939 .193392 .194846 0.196299 .197752 .199206 .200659 .202112 0.203565 .205019 .206472 .207925 .209378 0.210831 .212285 .213738 .215191 .216644 0.218097 .219550 .221003 .222456 .223909 0.225362 .226815 .228268 .229721 .231174 0.232627 .234079 .235532 .236985 .238438 0.239891 .241343 .242796 .244249 .245702 0.247154 .248607 .250060 .251512 .252965 0.254417 .255870 .257322 .258775 .260227	0.261680 .263132 .264585 .266037 .267489 0.268942 .270394 .271846 .273299 .274751 0.276203 .277655 .279108 .280560 .282012 0.283464 .284916 .286368 .287820 .289272 0.290724 .292176 .293628 .295080 .296532 0.297984 .299436 .300887 .302339 .303791 0.305243 .306694 .308146 .309598 .311049 0.312501 .313953 .315404 .316856 .318307 0.319759 .321210 .322662 .324113 .325564 0.327016 .328467 .329918 .331370 .332821 0.334272 .335723 .337174 .338625 .340076 0.341528 .342979 .344430 .345881 .347331	0.348782 .350233 .351684 .353135 .354586 0.356036 .357487 .358938 .360389 .361839 0.363290 .364740 .366191 .367642 .369092 0.370542 .371993 .373443 .374894 .376344 0.377794 .379245 .380695 .382145 .383595 0.385045 .386495 .387945 .389395 .390846 0.392295 .393745 .395195 .396645 .398095 0.399545 .400995 .402444 .403894 .405344 0.406793 .408243 .409693 .411142 .412592 0.414041 .415490 .416940 .418389 .419839 0.421288 .422737 .424186 .425635 .427085 0.428534 .429983 .431432 .432881 .434330	0.435779 .437228 .438676 .440125 .441574 0.443023 .444471 .445920 .447369 .448817 0.450266 .451714 .453163 .454611 .456060 0.457508 .458956 .460405 .461853 .463301 0.464749 .466197 .467646 .469094 .470542 0.471990 .473437 .474885 .476333 .477781 0.479229 .480676 .482124 .483572 .485019 0.486467 .487914 .489362 .490809 .492257 0.493704 .495151 .496599 .498046 .499493 0.500940 .502387 .503834 .505281 .506728 0.508175 .509622 .511069 .512516 .513963 0.515409 .516856 .518303 .519749 .521196	0.522642 .524089 .525535 .526982 .528428 0.529874 .531320 .532767 .534213 .535659 0.537105 .538551 .539997 .541443 .542889 0.544334 .545780 .547226 .548672 .550117 0.551563 .553008 .554454 .555899 .557345 0.558790 .560235 .561681 .563126 .564571 0.566016 .567461 .568906 .570351 .571796 0.573241 .574686 .576131 .577575 .579020 0.580465 .581909 .583354 .584798 .586243 0.587687 .589131 .590576 .592020 .593464 0.594908 .596352 .597796 .599240 .600684 0.602128 .603572 .605016 .606459 .607903	0.609347 .610790 .612234 .613677 .615121 0.616564 .618007 .619451 .620894 .622337 0.623780 .625223 .626666 .628109 .629552 0.630995 .632438 .633880 .635323 .636766 0.638208 .639651 .641093 .642536 .643978 0.645420 .646863 .648305 .649747 .651189 0.652631 .654073 .655515 .656957 .658399 0.659840 .661282 .662724 .664165 .665607 0.667048 .668490 .669931 .671372 .672813 0.674255 .675696 .677137 .678578 .680019 0.681460 .682901 .684341 .685782 .687223 0.688663 .690104 .691544 .692985 .694425	0.695866 .697306 .698746 .700186 .701626 0.703066 .704506 .705946 .707386 .708826 0.710265 .711705 .713145 .714584 .716024 0.717463 .718902 .720342 .721781 .723220 0.724659 .726098 .727537 .728976 .730415 0.731854 .733293 .734731 .736170 .737609 0.739047 .740485 .741924 .743362 .744800 0.746239 .747677 .749115 .750553 .751991 0.753429 .754866 .756304 .757742 .759179 0.760617 .762054 .763492 .764929 .766366 0.767804 .769241 .770678 .772115 .773552 0.774989 .776426 .777862 .779299 .780736	0.782172 .783609 .785045 .786482 .787918 0.789354 .790790 .792226 .793662 .795098 0.796534 .797970 .799406 .800842 .802277 0.803713 .805148 .806584 .808019 .809454 0.810890 .812325 .813760 .815195 .816630 0.818065 .819499 .820934 .822369 .823803 0.825238 .826672 .828107 .829541 .830975 0.832410 .833844 .835278 .836712 .838146 0.839579 .841013 .842447 .843881 .845314 0.846748 .848181 .849614 .851047 .852481 0.853914 .855347 .856780 .858213 .859646 0.861078 .862511 .863944 .865376 .866809	0.868241 .869673 .871105 .872538 .873970 0.875402 .876834 .878265 .879697 .881129 0.882561 .883992 .885424 .886855 .888286 0.889718 .891149 .892580 .894011 .895442 0.896873 .898304 .899734 .901165 .902596 0.904026 .905457 .906887 .908317 .909748 0.911178 .912608 .914038 .915468 .916897 0.918327 .919757 .921186 .922616 .924045 0.925475 .926904 .928333 .929762 .931191 0.932620 .934049 .935478 .936907 .938335 0.939764 .941192 .942621 .944049 .945477 0.946905 .948333 .949761 .951189 .952617

MIN	0°	1°	2°	3°	4°	5°	6°	7°	8°	9°	10°
METRIC - 125mm (Machine Taper = 18.0385mm or 0.710177in)
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59	0.0000 .0364 .0727 .1091 .1454 0.1818 .2182 .2545 .2909 .3272 0.3636 .4000 .4363 .4727 .5091 0.5454 .5818 .6181 .6545 .6909 0.7272 .7636 .7999 .8363 .8727 0.9090 .9454 .9817 1.0181 .0545 1.0908 .1272 .1635 .1999 .2363 1.2726 .3090 .3453 .3817 .4180 1.4544 .4908 .5271 .5635 .5998 1.6362 .6726 .7089 .7453 .7816 1.8180 .8543 .8907 .9271 .9634 1.9998 2.0361 .0725 .1088 .1452	2.1816 .2179 .2543 .2906 .3270 2.3633 .3997 .4360 .4724 .5087 2.5451 .5814 .6178 .6542 .6905 2.7269 .7632 .7996 .8359 .8723 2.9086 .9450 .9813 3.0177 .0540 3.0904 .1267 .1631 .1994 .2358 3.2721 .3085 .3448 .3812 .4175 3.4539 .4902 .5266 .5629 .5992 3.6356 .6719 .7083 .7446 .7810 3.8173 .8537 .8900 .9263 .9627 3.9990 4.0354 .0717 .1081 .1444 4.1807 .2171 .2534 .2898 .3261	4.3624 .3988 .4351 .4715 .5078 4.5441 .5805 .6168 .6531 .6895 4.7258 .7621 .7985 .8348 .8711 4.9075 .9438 .9801 5.0165 .0528 5.0891 .1255 .1618 .1981 .2345 5.2708 .3071 .3434 .3798 .4161 5.4524 .4887 .5251 .5614 .5977 5.6340 .6704 .7067 .7430 .7793 5.8157 .8520 .8883 .9246 .9609 5.9973 6.0336 .0699 .1062 .1425 6.1789 .2152 .2515 .2878 .3241 6.3604 .3967 .4331 .4694 .5057	6.5420 .5783 .6146 .6509 .6872 6.7235 .7599 .7962 .8325 .8688 6.9051 .9414 .9777 7.0140 .0503 7.0866 .1229 .1592 .1955 .2318 7.2681 .3044 .3407 .3770 .4133 7.4496 .4859 .5222 .5585 .5948 7.6311 .6674 .7037 .7399 .7762 7.8125 .8488 .8851 .9214 .9577 7.9940 8.0303 .0665 .1028 .1391 8.1754 .2117 .2480 .2842 .3205 8.3568 .3931 .4294 .4656 .5019 8.5382 .5745 .6107 .6470 .6833	8.7196 .7558 .7921 .8284 .8646 8.9009 .9372 .9734 9.0097 .0460 9.0822 .1185 .1548 .1910 .2273 9.2636 .2998 .3361 .3723 .4086 9.4449 .4811 .5174 .5536 .5899 9.6261 .6624 .6986 .7349 .7711 9.8074 .8436 .8799 .9161 .9524 9.9886 10.0249 .0611 .0974 .1336 10.1698 .2061 .2423 .2786 .3148 10.3510 .3873 .4235 .4597 .4960 10.5322 .5684 .6047 .6409 .6771 10.7133 .7496 .7858 .8220 .8582	10.8945 .9307 .9669 11.0031 .0394 11.0756 .1118 .1480 .1842 .2204 11.2566 .2929 .3291 .3653 .4015 11.4377 .4739 .5101 .5463 .5825 11.6187 .6549 .6911 .7273 .7635 11.7997 .8359 .8721 .9083 .9445 11.9807 12.0169 .0531 .0893 .1255 12.1617 .1979 .2340 .2702 .3064 12.3426 .3788 .4150 .4511 .4873 12.5235 .5597 .5959 .6320 .6682 12.7044 .7406 .7767 .8129 .8491 12.8852 .9214 .9576 .9937 13.0299	13.0661 .1022 .1384 .1745 .2107 13.2469 .2830 .3192 .3553 .3915 13.4276 .4638 .4999 .5361 .5722 13.6084 .6445 .6806 .7168 .7529 13.7891 .8252 .8613 .8975 .9336 13.9698 14.0059 .0420 .0781 .1143 14.1504 .1865 .2227 .2588 .2949 14.3310 .3671 .4033 .4394 .4755 14.5116 .5477 .5838 .6200 .6561 14.6922 .7283 .7644 .8005 .8366 14.8727 .9088 .9449 .9810 15.0171 15.0532 .0893 .1254 .1615 .1976	15.2337 .2698 .3058 .3419 .3780 15.4141 .4502 .4863 .5223 .5584 15.5945 .6306 .6667 .7027 .7388 15.7749 .8109 .8470 .8831 .9191 15.9552 .9913 16.0273 .0634 .0994 16.1355 .1716 .2076 .2437 .2797 16.3158 .3518 .3879 .4239 .4600 16.4960 .5320 .5681 .6041 .6402 16.6762 .7122 .7483 .7843 .8203 16.8564 .8924 .9284 .9644 17.0005 17.0365 .0725 .1085 .1446 .1806 17.2166 .2526 .2886 .3246 .3606	17.3966 .4326 .4686 .5047 .5407 17.5767 .6127 .6487 .6846 .7206 17.7566 .7926 .8286 .8646 .9006 17.9366 .9726 18.0085 .0445 .0805 18.1165 .1525 .1884 .2244 .2604 18.2963 .3323 .3683 .4043 .4402 18.4762 .5121 .5481 .5841 .6200 18.6560 .6919 .7279 .7638 .7998 18.8357 .8717 .9076 .9435 .9795 19.0154 .0514 .0873 .1232 .1592 19.1951 .2310 .2669 .3029 .3388 19.3747 .4106 .4466 .4825 .5184	19.5543 .5902 .6261 .6620 .6979 19.7339 .7698 .8057 .8416 .8775 19.9134 .9493 .9851 20.0210 .0569 20.0928 .1287 .1646 .2005 .2364 20.2722 .3081 .3440 .3799 .4157 20.4516 .4875 .5234 .5592 .5951 20.6310 .6668 .7027 .7385 .7744 20.8102 .8461 .8819 .9178 .9536 20.9895 21.0253 .0612 .0970 .1329 21.1687 .2045 .2404 .2762 .3120 21.3478 .3837 .4195 .4553 .4911 21.5270 .5628 .5986 .6344 .6702	21.7060 .7418 .7776 .8134 .8492 21.8850 .9208 .9566 .9924 22.0282 22.0640 .0998 .1356 .1714 .2072 22.2429 .2787 .3145 .3503 .3861 22.4218 .4576 .4934 .5291 .5649 22.6007 .6364 .6722 .7079 .7437 22.7794 .8152 .8509 .8867 .9224 22.9582 .9939 23.0297 .0654 .1011 23.1369 .1726 .2083 .2441 .2798 23.3155 .3512 .3869 .4227 .4584 23.4941 .5298 .5655 .6012 .6369 23.6726 .7083 .7440 .7797 .8154

MIN	0°	1°	2°	3°	4°	5°	6°	7°	8°	9°	10°
METRIC - 100mm (Machine Taper = 14.430823mm or 0.568143in)
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59	0.00000 .02909 .05818 .08727 .11636 0.14544 .17453 .20362 .23271 .26180 0.29089 .31998 .34907 .37815 .40724 0.43633 .46542 .49451 .52360 .55268 0.58177 .61086 .63995 .66904 .69813 0.72721 .75630 .78539 .81448 .84357 0.87265 .90174 .93083 .95992 .98900 1.01809 .04718 .07627 .10535 .13444 1.16353 .19261 .22170 .25079 .27987 1.30896 .33805 .36713 .39622 .42530 1.45439 .48348 .51256 .54165 .57073 1.59982 .62890 .65799 .68707 .71616	1.74524 .77432 .80341 .83249 .86158 1.89066 .91974 .94883 .97791 2.00699 2.03608 .06516 .09424 .12332 .15241 2.18149 .21057 .23965 .26873 .29781 2.32690 .35598 .38506 .41414 .44322 2.47230 .50138 .53046 .55954 .58862 2.61769 .64677 .67585 .70493 .73401 2.76309 .79216 .82124 .85032 .87940 2.90847 .93755 .96662 .99570 3.02478 3.05385 .08293 .11200 .14108 .17015 3.19922 .22830 .25737 .28644 .31552 3.34459 .37366 .40274 .43181 .46088	3.48995 .51902 .54809 .57716 .60623 3.63530 .66437 .69344 .72251 .75158 3.78065 .80971 .83878 .86785 .89692 3.92598 .95505 .98411 4.01318 .04224 4.07131 .10037 .12944 .15850 .18757 4.21663 .24569 .27475 .30382 .33288 4.36194 .39100 .42006 .44912 .47818 4.50724 .53630 .56536 .59442 .62347 4.65253 .68159 .71065 .73970 .76876 4.79781 .82687 .85592 .88498 .91403 4.94308 .97214 5.00119 .03024 .05929 5.08835 .11740 .14645 .17550 .20455	5.23360 .26264 .29169 .32074 .34979 5.37883 .40788 .43693 .46597 .49502 5.52406 .55311 .58215 .61119 .64024 5.66928 .69832 .72736 .75640 .78544 5.81448 .84352 .87256 .90160 .93064 5.95967 .98871 6.01775 .04678 .07582 6.10485 .13389 .16292 .19196 .22099 6.25002 .27905 .30808 .33711 .36614 6.39517 .42420 .45323 .48226 .51129 6.54031 .56934 .59836 .62739 .65641 6.68544 .71446 .74348 .77251 .80153 6.83055 .85957 .88859 .91761 .94663	6.97565 7.00467 .03368 .06270 .09171 7.12073 .14974 .17876 .20777 .23678 7.26580 .29481 .32382 .35283 .38184 7.41085 .43986 .46887 .49787 .52688 7.55589 .58489 .61390 .64290 .67190 7.70091 .72991 .75891 .78791 .81691 7.84591 .87491 .90391 .93290 .96190 7.99090 8.01989 .04889 .07788 .10687 8.13587 .16486 .19385 .22284 .25183 8.28082 .30981 .33880 .36778 .39677 8.42576 .45474 .48373 .51271 .54169 8.57067 .59966 .62864 .65762 .68660	8.71557 .74455 .77353 .80251 .83148 8.86046 .88943 .91840 .94738 .97635 9.00532 .03429 .06326 .09223 .12119 9.15016 .17913 .20809 .23706 .26602 9.29499 .32395 .35291 .38187 .41083 9.43979 .46875 .49771 .52666 .55562 9.58458 .61353 .64248 .67144 .70039 9.72934 .75829 .78724 .81619 .84514 9.87408 .90303 .93197 .96092 .98986 10.01881 .04775 .07669 .10563 .13457 10.16351 .19245 .22138 .25032 .27925 10.30819 .33712 .36605 .39499 .42392	10.45285 .48178 .51070 .53963 .56856 10.59748 .62641 .65533 .68425 .71318 10.74210 .77102 .79994 .82885 .85777 10.88669 .91560 .94452 .97343 11.00234 11.03126 .06017 .08908 .11799 .14689 11.17580 .20471 .23361 .26252 .29142 11.32032 .34922 .37812 .40702 .43592 11.46482 .49372 .52261 .55151 .58040 11.60929 .63818 .66707 .69596 .72485 11.75374 .78263 .81151 .84040 .86928 11.89816 .92704 .95593 .98481 12.01368 12.04256 .07144 .10031 .12919 .15806	12.18693 .21581 .24468 .27355 .30241 12.33128 .36015 .38901 .41788 .44674 12.47560 .50446 .53332 .56218 .59104 12.61990 .64875 .67761 .70646 .73531 12.76416 .79302 .82186 .85071 .87956 12.90841 .93725 .96609 .99494 13.02378 13.05262 .08146 .11030 .13913 .16797 13.19681 .22564 .25447 .28330 .31213 13.34096 .36979 .39862 .42744 .45627 13.48509 .51392 .54274 .57156 .60038 13.62919 .65801 .68683 .71564 .74445 13.77327 .80208 .83089 .85970 .88850	13.91731 .94612 .97492 14.00372 .03252 14.06132 .09012 .11892 .14772 .17651 14.20531 .23410 .26289 .29168 .32047 14.34926 .37805 .40684 .43562 .46440 14.49319 .52197 .55075 .57953 .60830 14.63708 .66585 .69463 .72340 .75217 14.78094 .80971 .83848 .86724 .89601 14.92477 .95353 .98230 15.01106 .03981 15.06857 .09733 .12608 .15484 .18359 15.21234 .24109 .26984 .29858 .32733 15.35607 .38482 .41356 .44230 .47104 15.49978 .52851 .55725 .58598 .61472	15.64345 .67218 .70091 .72963 .75836 15.78708 .81581 .84453 .87325 .90197 15.93069 .95940 .98812 16.01683 .04555 16.07426 .10297 .13167 .16038 .18909 16.21779 .24650 .27520 .30390 .33260 16.36129 .38999 .41868 .44738 .47607 16.50476 .53345 .56214 .59082 .61951 16.64819 .67687 .70556 .73423 .76291 16.79159 .82026 .84894 .87761 .90628 16.93495 .96362 .99228 17.02095 .04961 17.07828 .10694 .13560 .16425 .19291 17.22156 .25022 .27887 .30752 .33617	17.36482 .39346 .42211 .45075 .47939 17.50803 .53667 .56531 .59395 .62258 17.65121 .67984 .70847 .73710 .76573 17.79435 .82298 .85160 .88022 .90884 17.93746 .96607 .99469 18.02330 .05191 18.08052 .10913 .13774 .16635 .19495 18.22355 .25215 .28075 .30935 .33795 18.36654 .39514 .42373 .45232 .48091 18.50949 .53808 .56666 .59524 .62382 18.65240 .68098 .70956 .73813 .76670 18.79528 .82385 .85241 .88098 .90954 18.93811 .96667 .99523 19.02379 .05234

MIN	0°	1°	2°	3°	4°	5°	6°	7°	8°	9°	10°
METRIC - 75mm (Machine Taper = 10.823121mm or 0.426107in)
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59	0.00000 .02182 .04363 .06545 .08727 0.10908 .13090 .15272 .17453 .19635 0.21817 .23998 .26180 .28362 .30543 0.32725 .34906 .37088 .39270 .41451 0.43633 .45815 .47996 .50178 .52359 0.54541 .56723 .58904 .61086 .63267 0.65449 .67631 .69812 .71994 .74175 0.76357 .78538 .80720 .82901 .85083 0.87264 .89446 .91628 .93809 .95990 0.98172 1.00353 .02535 .04716 .06898 1.09079 .11261 .13442 .15623 .17805 1.19986 .22168 .24349 .26530 .28712	1.30893 .33074 .35256 .37437 .39618 1.41800 .43981 .46162 .48343 .50525 1.52706 .54887 .57068 .59249 .61430 1.63612 .65793 .67974 .70155 .72336 1.74517 .76698 .78879 .81060 .83241 1.85422 .87603 .89784 .91965 .94146 1.96327 .98508 2.00689 .02870 .05051 2.07231 .09412 .11593 .13774 .15955 2.18135 .20316 .22497 .24678 .26858 2.29039 .31219 .33400 .35581 .37761 2.39942 .42122 .44303 .46483 .48664 2.50844 .53025 .55205 .57386 .59566	2.61746 .63927 .66107 .68287 .70467 2.72648 .74828 .77008 .79188 .81368 2.83548 .85729 .87909 .90089 .92269 2.94449 .96629 .98809 3.00988 .03168 3.05348 .07528 .09708 .11888 .14067 3.16247 .18427 .20607 .22786 .24966 3.27145 .29325 .31505 .33684 .35864 3.38043 .40222 .42402 .44581 .46761 3.48940 .51119 .53298 .55478 .57657 3.59836 .62015 .64194 .66373 .68552 3.70731 .72910 .75089 .77268 .79447 3.81626 .83805 .85984 .88162 .90341	3.92520 .94698 .96877 .99056 4.01234 4.03413 .05591 .07770 .09948 .12126 4.14305 .16483 .18661 .20840 .23018 4.25196 .27374 .29552 .31730 .33908 4.36086 .38264 .40442 .42620 .44798 4.46976 .49153 .51331 .53509 .55686 4.57864 .60042 .62219 .64397 .66574 4.68752 .70929 .73106 .75284 .77461 4.79638 .81815 .83992 .86169 .88346 4.90523 .92700 .94877 .97054 .99231 5.01408 .03585 .05761 .07938 .10115 5.12291 .14468 .16644 .18821 .20997	5.23174 .25350 .27526 .29702 .31879 5.34055 .36231 .38407 .40583 .42759 5.44935 .47111 .49286 .51462 .53638 5.55814 .57989 .60165 .62340 .64516 5.66691 .68867 .71042 .73217 .75393 5.77568 .79743 .81918 .84093 .86268 5.88443 .90618 .92793 .94968 .97143 5.99317 6.01492 .03667 .05841 .08016 6.10190 .12364 .14539 .16713 .18887 6.21062 .23236 .25410 .27584 .29758 6.31932 .34106 .36279 .38453 .40627 6.42801 .44974 .47148 .49321 .51495	6.53668 .55841 .58015 .60188 .62361 6.64534 .66707 .68880 .71053 .73226 6.75399 .77572 .79744 .81917 .84090 6.86262 .88435 .90607 .92779 .94952 6.97124 .99296 7.01468 .03640 .05812 7.07984 .10156 .12328 .14500 .16671 7.18843 .21015 .23186 .25358 .27529 7.29700 .31872 .34043 .36214 .38385 7.40556 .42727 .44898 .47069 .49240 7.51410 .53581 .55752 .57922 .60093 7.62263 .64433 .66604 .68774 .70944 7.73114 .75284 .77454 .79624 .81794	7.83963 .86133 .88303 .90472 .92642 7.94811 .96981 .99150 8.01319 .03488 8.05657 .07826 .09995 .12164 .14333 8.16502 .18670 .20839 .23007 .25176 8.27344 .29512 .31681 .33849 .36017 8.38185 .40353 .42521 .44689 .46856 8.49024 .51192 .53359 .55527 .57694 8.59861 .62029 .64196 .66363 .68530 8.70697 .72864 .75031 .77197 .79364 8.81530 .83697 .85863 .88030 .90196 8.92362 .94528 .96694 .98860 9.01026 9.03192 .05358 .07524 .09689 .11855	9.14020 .16185 .18351 .20516 .22681 9.24846 .27011 .29176 .31341 .33506 9.35670 .37835 .39999 .42164 .44328 9.46492 .48656 .50821 .52985 .55149 9.57312 .59476 .61640 .63803 .65967 9.68130 .70294 .72457 .74620 .76783 9.78946 .81109 .83272 .85435 .87598 9.89760 .91923 .94085 .96248 .98410 10.00572 .02734 .04896 .07058 .09220 10.11382 .13544 .15705 .17867 .20028 10.22190 .24351 .26512 .28673 .30834 10.32995 .35156 .37317 .39477 .41638	10.43798 .45959 .48119 .50279 .52439 10.54599 .567 .58919 .61079 .63239 10.65398 .67558 .69717 .71876 .74036 10.76195 .78354 .80513 .82672 .84830 10.86989 .89148 .91306 .93464 .95623 10.97781 .99939 11.02097 .04255 .06413 11.08571 .10728 .12886 .15043 .17201 11.19358 .21515 .23672 .25829 .27986 11.30143 .32300 .34456 .36613 .38769 11.40925 .43082 .45238 .47394 .49550 11.51706 .53861 .56017 .58172 .60328 11.62483 .64638 .66794 .68949 .71104	11.73258 .75413 .77568 .79722 .81877 11.84031 .86186 .88340 .90494 .92648 11.94802 .96955 .99109 12.01262 .03416 12.05569 .07722 .09876 .12029 .14182 12.16334 .18487 .20640 .22792 .24945 12.27097 .29249 .31401 .33553 .35705 12.37857 .40009 .42160 .44312 .46463 12.48614 .50766 .52917 .55068 .57218 12.59369 .61520 .63670 .65821 .67971 12.70121 .72271 .74421 .76571 .78721 12.80871 .83020 .85170 .87319 .89468 12.91617 .93766 .95915 .98064 13.00213	13.02361 .04510 .06658 .08806 .10955 13.13103 .15250 .17398 .19546 .21694 13.23841 .25988 .28136 .30283 .32430 13.34577 .36723 .38870 .41017 .43163 13.45309 .47456 .49602 .51748 .53894 13.56039 .58185 .60331 .62476 .64621 13.66766 .68912 .71056 .73201 .75346 13.77491 .79635 .81780 .83924 .86068 13.88212 .90356 .92500 .94643 .96787 13.98930 14.01074 .03217 .05360 .07503 14.09646 .11788 .13931 .16073 .18216 14.20358 .22500 .24642 .26784 .28926
